Advanced Pipe Scrapers

If you are looking to quickly & remove the oxide layer for larger HDPE pipes 75mm to 710mm, you can count on the Advanced piping scrapers to do this with ease & consistency. N...

For pricing, availability, and lead times, request a quote.

Working Range Od

Please make a selection from each filter above in order to "Add to Quote".

Quantity

- +

Add to Quote

Please use the filters above to find a specific product below.
Alternatively, you can click on a line item below to select that specific product.

Product Code	Working Range Id	Working Range Od	Scraping Length Mm	Pipe Scraper No	Weight Kg
RTC160	38 to 154	50 to 160	70	160	2.5
RTC315	58 to 300	75 to 315	137	315	4.5
RTC710	290 to 675	355 to 710	530	710	16

Compliance

Our products are tested regularly for high quality, durability, performance and safety.

Download PDF

Product FAQs

What are the key considerations when managing expansion in above-ground HDPE pipe installations?
- Ensure there is enough space for your pipe to both expand and contract
- When ordering pipe, order additional pipe to manage the expansion.
- Clear the space for the pipe to move of rocks and objects which could potentially damage the pipe
- Use high quality brackets and restrictors
- Meet with Advanced Pipe Systems early in your planning process to ensure a smooth outcome
- Ensure your installation is done right in the first instance, or risk issues down the track

Chemical Resistance

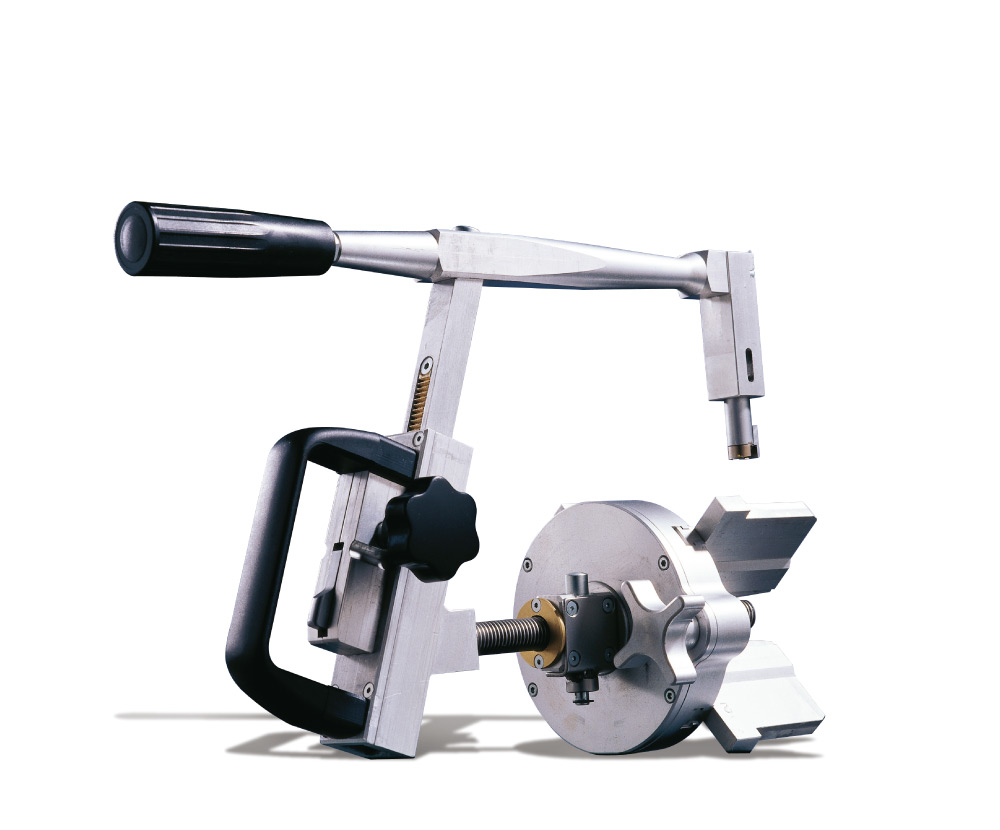

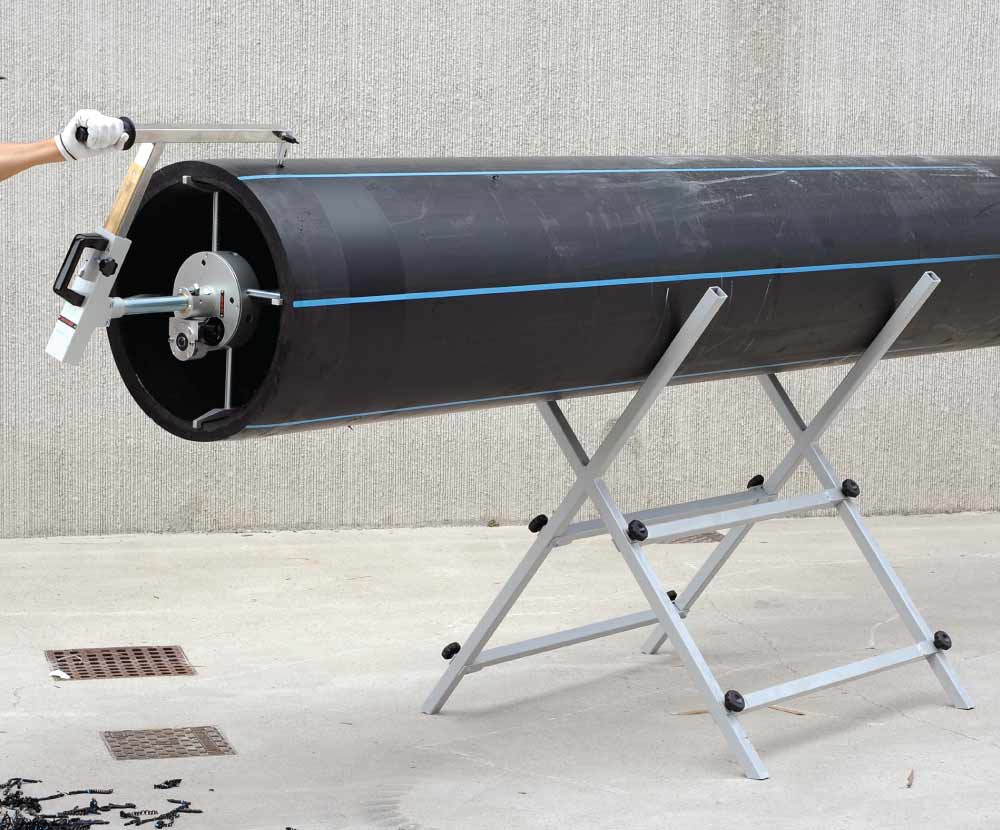

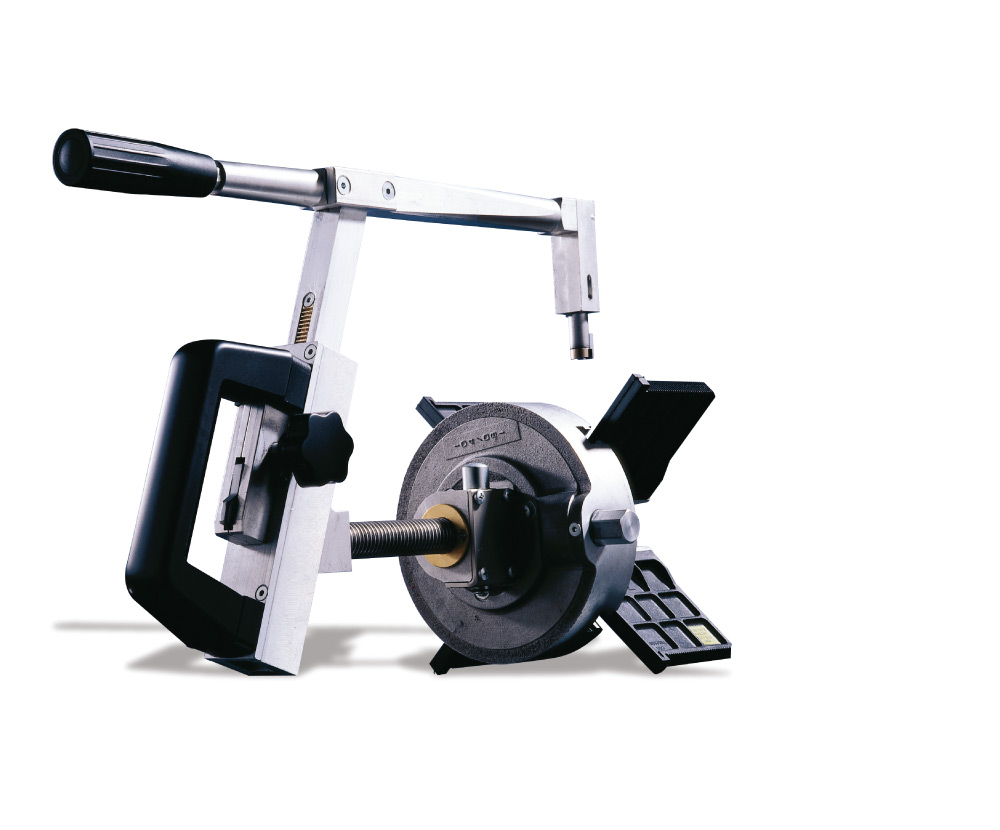

If you are looking to quickly & remove the oxide layer for larger HDPE pipes 75mm to 710mm, you can count on the Advanced piping scrapers to do this with ease & consistency. Not only is it easy to use with a quick setup time the 4 adjustable arm clamps allow for a large range of sizes in 1 tool. The length of the scraping surface can be adjusted to suit the depth of the electrofusion coupler you are working with. The reason many project specs will ban hand scaping & require mechanical scraping tools to be used is because of consistency & control. Our EF pipe scapers will perform a consistent shaving from the pipe circumference & if the blades become blunt it is a simple process to rotate the 4 sided blade & continue.

Maintains constant thickness.
Four extendable arm clamps that clamp directly to the inside diameter of the pipe.
Ability to prep spigot fittings and pipe
Interchangeable carbon steel blades, Four cutting edges
