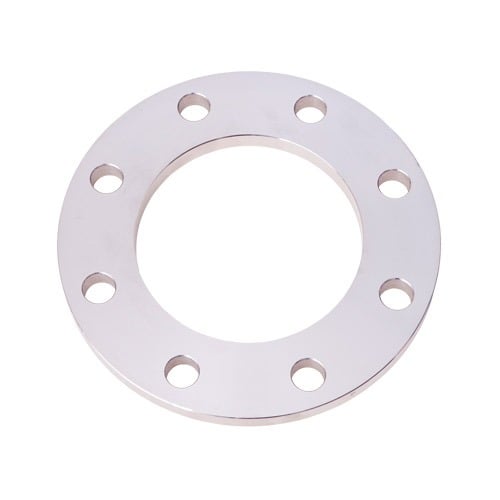

316 Stainless Steel Flange Table E - High-Pressure Applications

HDPE/PE100 performs exceptionally in corrosive applications, so 316 stainless steel – also known as marine grade stainless – is a perfect match. 316 has much stronger corrosio...

For pricing, availability, and lead times, request a quote.

Pcd

Pe Pipe Size Mm

Please make a selection from each filter above in order to "Add to Quote".

Quantity

- +

Add to Quote

Please use the filters above to find a specific product below.
Alternatively, you can click on a line item below to select that specific product.

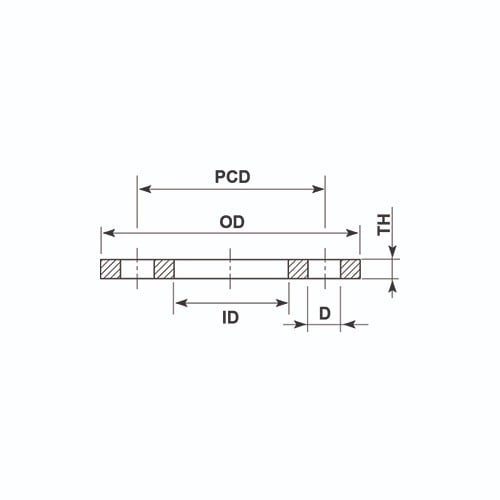

Pe Pipe Size Mm	Size Od Mm	Bolt Size M	Id Mm	Product Code	Pcd	Flange Size Mm	No Bolt Holes	Bolt Hole Diameter	Weight Kg	Flange Size Inches	Th Mm	Pattern
20	95	M12	32	316BR20E	67	15	4	14	0.36	0.5	8	Table E AS2129
25	100	M12	37	316BR25E	73	20	4	14	0.39	0.75	8	Table E AS2129
32	115	M12	44	316BR32E	83	25	4	14	0.52	1	8	Table E AS2129
40	120	M12	52	316BR40E	87	32	4	14	0.54	1.25	8	Table E AS2129
50	135	M12	62	316BR50E	98	40	4	14	0.76	1.25	9	Table E AS2129
63	150	M16	78	316BR63E	114	50	4	18	0.93	2	10	Table E AS2129
75	165	M16	92	316BR75E	127	65	4	18	1.08	2.5	10	Table E AS2129
90	185	M16	108	316BR90E	146	80	4	18	1.58	3	12	Table E AS2129
110	215	M16	128	316BR110E	178	100	8	18	2.19	4	13	Table E AS2129
125	255	M16	140	316BR1255E	210	125	8	18	3.71	5	14	Table E AS2129
125	215	M16	140	316BR1254E	178	100	8	18	1.93	4	13	Table E AS2129
140	255	M16	158	316BR140E	210	125	8	18	3.24	5	14	Table E AS2129
160	280	M20	178	316BR160E	235	150	8	22	4.5	6	17	Table E AS2129
180	280	M20	195	316BR180E	235	150	8	22	3.84	6	17	Table E AS2129
200	335	M20	235	316BR200E	292	200	8	22	6.24	8	19	Table E AS2129
225	335	M20	240	316BR225E	292	200	8	22	5.96	8	19	Table E AS2129
250	405	M20	290	316BR250E	356	250	12	22	10.08	10	22	Table E AS2129
280	405	M20	300	316BR280E	356	250	12	22	6.73	10	16	Table E AS2129
315	455	M24	345	316BR315E	406	300	12	26	12.34	12	25	Table E AS2129
355	525	M24	376	316BR355E	470	350	12	26	22.61	14	29	Table E AS2129
400	580	M24	430	316BR400E	521	400	12	26	28.36	16	32	Table E AS2129
450	640	M24	480	316BR450E	584	450	16	26	33.3	18	32	Table E AS2129
500	705	M24	533	316BR500E	641	500	16	26	47.47	20	38	Table E AS2129
560	760	M27	590	316BR560E	699	560	16	30	58.49	22	44	Table E AS2129
630	825	M30	660	316BR630E	756	600	16	33	67.52	24	48	Table E AS2129
