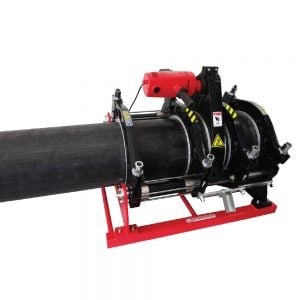

Advanced Butt Fusion Welding Machines 250

Our Advanced Butt Fusion Welding Machines 250 are engineered for fast, repeatable jointing of HDPE and PE pipe up to 250 mm in diameter. Built around a robust hydraulic frame, producing consistent, high-strength welds for water, mining, irrigation, industrial and civil pipeline projects across Australia.

What's included with our Butt Fusion Welding Machines

Every machine package consists of a hydraulic frame, an electric planning tool, a heating plate, a machine stand and a range of optional parts to suit your job site.

Key features

• Removable PTFE-coated heating plate with a high accuracy thermostat for stable, even heat distribution

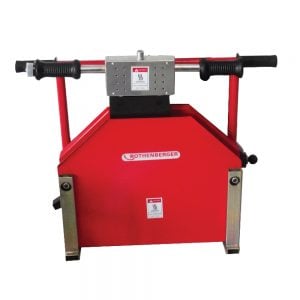

• Electric planning tool for clean, square pipe-end preparation
• Low starting pressure that protects weld quality on small pipe diameter
• Adjustable welding position, enabling the welding of short fittings
• High-accuracy, shockproof pressure gauge for precise, repeatable pressure control
• Integral two-channel timer that records both the soaking (heat) and cooling phases
• Single-phase 240V supply for straightforward site connection

Technical specifications

• Pipe capacity up to 250 mm OD HDPE / PE pipe
• Heating plate temperature ranges from 170–250°C
• Surface temperature deviation is ±5°C
• Heating plate is removable, PTFE-coated
• Two-channel timer (soak + cool)
• Single-phase power supply of 240V

Applications

Butt fusion welding machines suit contractors and project teams jointing polyethylene pipe across mining, water treatment, rural and irrigation, industrial and civil infrastructure. When welds are completed to recognised polyethylene jointing practice, the result is a fully fused, leak-free joint as strong as the pipe itself.

Ready to buy? Talk to our friendly customer support team about our range of butt fusion welding machines available for your project. We also support you with your piping systems, including fittings and welding tools.
