Advanced Butt Fusion Welding Machines 450mm
Welding Equipment

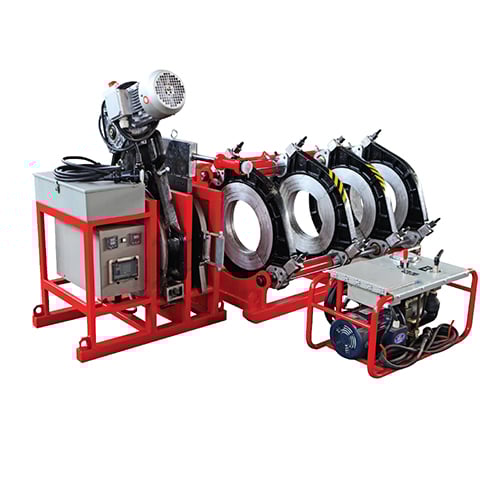

Advanced Butt Fusion Welding Machines 450mm consists of a hydraulic frame, planning tool, heating plate, stand & optional parts.
Removable PTFE coated heating plate with high...
Read More
For pricing, availability, and lead times, request a quote.
Pe Pipe Size Mm
Code
Quantity
- +
Add to Quote
Add to Quote
Please use the filters above to find a specific product below.
Alternatively, you can click on a line item below to select
that specific product.
| Pe Pipe Size Mm | Product Code | Box Qty | Heating Plate Max Temp Degrees | Pressure Adjustable Ranges | Working Voltage | Heating Plate Power | Planning Tool Power | Hydraulic Unit Power | Crane Power | Volume | Frame Mm | Hydraulic Unit | Support | Weight Kg | Total Power |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 200 225 250 280 315 355 400 450 | APS450200 | 3 | 270 | 0-8Mpa | 380VAC 3P N PE 50Hz | 5.38KW | 1.5KW | 1.5KW | 0.25T to 0.56KW | 2.58m2 | 1470 by 1050 by 1070 | 700 by 480 by 560 | 1000 by 900 by 1350 | 560 | 8.38KW |
Compliance
Our products are tested regularly for high quality, durability, performance and safety.
