Electrofusion Reducers

Advanced Piping Systems understands that performance poly fusion reducers need to short and compact, while maximizing flow and minimising turbulence. Advanced Piping has an ex...

For pricing, availability, and lead times, request a quote.

Pressure Rating

Sdr

D Mm

Please make a selection from each filter above in order to "Add to Quote".

Quantity

- +

Add to Quote

Please use the filters above to find a specific product below.
Alternatively, you can click on a line item below to select that specific product.

Compliance

Our products are tested regularly for high quality, durability, performance and safety.

Download PDF

Product FAQs

What are the key considerations when managing expansion in above-ground HDPE pipe installations?
- Ensure there is enough space for your pipe to both expand and contract
- When ordering pipe, order additional pipe to manage the expansion.
- Clear the space for the pipe to move of rocks and objects which could potentially damage the pipe
- Use high quality brackets and restrictors
- Meet with Advanced Pipe Systems early in your planning process to ensure a smooth outcome
- Ensure your installation is done right in the first instance, or risk issues down the track

Chemical Resistance

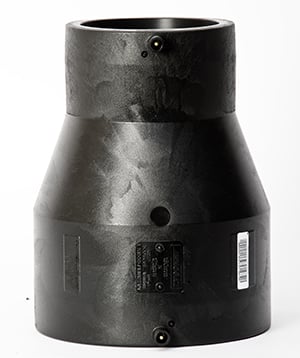

Advanced Piping Systems understands that performance poly fusion reducers need to short and compact, while maximizing flow and minimising turbulence. Advanced Piping has an exceptionally large range of reductions with 30 available from 25/20mm – 225/160mm. Matched to our poly fusion tees you can have 30 EF reducing tee combinations. EF fittings are very popular for pump station and valve pit construction, as flexibility and space is critical. On a pumps discharge, reducers are often used as increasers. By increasing the size of pipe, the flow improves and the friction loss is reduced. Both sides of the reducer also weld at the same time, therefore thread adaptors or flanges easily push into the socketed ends, cutting the overall height, length and installation time significantly. All reducers are rated to PN16 and can be fused with any manual and barcode scanning EF welders. Poly fusion fittings can be used for civil piping and mining applications and have the same pressure rating and longevity, with a more than 100-year service life expectancy.
