Electrofusion Sockets

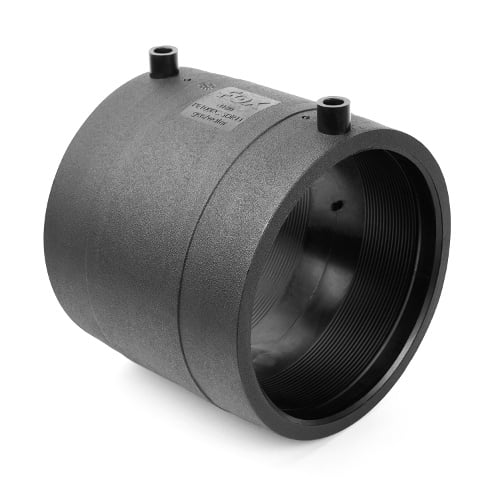

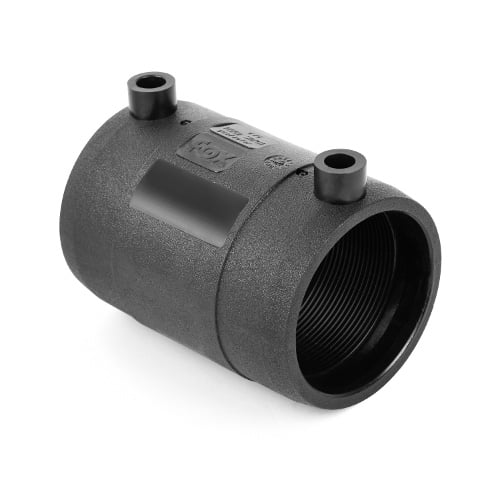

Advanced Piping Systems revolutionizes pipeline construction with its cutting-edge Electrofusion (EF) technology, building upon the original Rollmaplast system patented by Swiss company Von Roll in 1977. An electrofusion socket/coupler, also known as an HDPE coupling fitting, serves the purpose of seamlessly connecting two lengths of poly pipe in a straight alignment. Moreover, these fittings are used for joining a long spigot fitting to a section of pipe. Our EF sockets are primarily intended for HDPE pipe applications and are manufactured from Virgin PE100 resin. The fittings incorporate embedded resistance (an energizing coil of wire) ensuring consistent melting for a robust electrofusion joint and reducing welding and cooling durations.  and are compatible with any barcode reading, or manual programmable welding machine. Please check the welding machine's capacity first, however, as large EF sockets have a higher current/amp requirement. Since our establishment in 1990, Advanced Piping Systems has expanded the EF system to encompass large utility piping systems. Our state-of-the-art 39.5 Volt Electrofusion System includes advanced features such as dual heating zones in giant 1-meter diameter couplers. This innovation allows for the seamless fusion of sockets, eliminating the need for mechanical joints and ensuring a fully fused, leak-proof system. Advanced EF sockets are available in up to 1600mm. EF Sockets can also weld range pipe classes. They can also be used as an SDR transition very effectively. Advanced Piping Systems' EF sockets are available in PN25 SDR 7.4 – 32mm – 400mm, PN20 SDR9 - 450 - 630mm, PN16 SDR11 20mm – 1200mm, and PN10 SDR17 from 355mm to 1600mm. SDR 11 electrofusion couplers are designed to withstand PN16 water pressure and 1000 kPa gas pressure, while SDR 17 counterparts are rated for PN10 water and PN6 gas.

• Advanced Technology: EF fittings utilize embedded resistance elements and Virgin PE100 resin for exceptional durability and reliability.
• Streamlined Fusion Process: Electrical resistance heating seamlessly melds adjoining surfaces for flawless joints, impervious to leaks.
• Ease of Installation: Intuitive design and straightforward operation ensure effortless fusion, accelerating project timelines.
• Versatile Solutions: EF fittings accommodate diverse pipe sizes and materials, offering robust solutions for various applications.

EF fittings epitomize simplicity and reliability, offering ease of installation and unmatched performance across diverse applications. From flawless fusion joints to steadfast durability, Advanced Piping Systems sets the standard for excellence in pipeline construction. The age-old question of whether to butt-weld or electro-fuse is addressed by Advanced Piping Systems through our comprehensive services. We understand that both methods have their advantages, and as the industry evolves, the integration of both techniques in a single pipeline becomes more common. Various sizes of electrofusion couplings are available to suit different requirements. (They may also be referred to as electrofusion joiners, HDPE coupling fittings, electrofusion socket fittings, or EF pipe joiners, Fusion Socket, Fusion joiner, Fusion coupler, Electrofusion (EF) joiner, Electrofusion (EF) coupler, Poly Joiner, Poly socket, poly coupler, HDPE coupler, HDPE socket, HDPE joiner, MDPE joiner, MDPE coupler, MDPE socket, Joiner PE100 Electrofusion, Joiner PE80 Electro fusion, Joiner PE80B, PE 100RC EF Socket) Electrofusion coupling sizes available below:

• 25mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 32mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 40mm Electrofusion Socket/Coupler/Joiner PN20/25 SDR9/7.4
• 40mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 50mm Electrofusion Socket/Coupler/Joiner PN20/25 SDR7.4
• 50mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 63mm Electrofusion Socket/Coupler/Joiner PN20/25 SDR9/7.4
• 63mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 75mm Electrofusion Socket/Coupler/Joiner PN20/25 SDR9/7.4
• 75mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 90mm Electrofusion Socket/Coupler/Joiner PN20/25 SDR9/7.4
• 90mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 110mm Electrofusion Socket/Coupler/Joiner PN20/25 SDR9/7.4
• 110mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 125mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 125mm Electrofusion Socket/Coupler/Joiner PN20/25 SDR9/7.4
• 140mm Electrofusion Socket/Coupler/Joiner PN20/25 SDR9/7.4
• 140mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 160mm Electrofusion Socket/Coupler/Joiner PN20/25 SDR9/7.4
• 160mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 180mm Electrofusion Socket/Coupler/Joiner PN20/25 SDR9/7.4
• 180mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 200mm Electrofusion Socket/Coupler/Joiner PN20/25 SDR9/7.4
• 200mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 225mm Electrofusion Socket/Coupler/Joiner PN20/25 SDR9/7.4
• 225mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 250mm Electrofusion Socket/Coupler/Joiner PN20/25 SDR9/7.4
• 250mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 280mm Electrofusion Socket/Coupler/Joiner PN20/25 SDR9/7.4
• 280mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 315mm Electrofusion Socket/Coupler/Joiner PN20/25 SDR9/7.4
• 315mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 355mm Electrofusion Socket/Coupler/Joiner PN20/25 SDR9/7.4
• 355mm Electrofusion Socket/Coupler/Joiner PN10 SDR17
• 355mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 400mm Electrofusion Socket/Coupler/Joiner PN20/25 SDR9/7.4
• 400mm Electrofusion Socket/Coupler/Joiner PN10 SDR17
• 400mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 450mm Electrofusion Socket/Coupler/Joiner PN20 SDR9
• 450mm Electrofusion Socket/Coupler/Joiner PN10 SDR17
• 450mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 500mm Electrofusion Socket/Coupler/Joiner PN20 SDR9
• 500mm Electrofusion Socket/Coupler/Joiner PN10 SDR17
• 500mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 560mm Electrofusion Socket/Coupler/Joiner PN20 SDR9
• 560mm Electrofusion Socket/Coupler/Joiner PN10 SDR17
• 560mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 630mm Electrofusion Socket/Coupler/Joiner PN20 SDR9
• 630mm Electrofusion Socket/Coupler/Joiner PN10 SDR17
• 630mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 710mm Electrofusion Socket/Coupler/Joiner PN10 SDR17
• 710mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 800mm Electrofusion Socket/Coupler/Joiner PN10 SDR17
• 800mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 900mm Electrofusion Socket/Coupler/Joiner PN10 SDR17
• 900mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 1000mm Electrofusion Socket/Coupler/Joiner PN10 SDR17
• 1000mm Electrofusion Socket/Coupler/Joiner PN16 SDR11
• 1200mm Electrofusion Socket/Coupler/Joiner PN10 SDR17
• 1200mm Electrofusion Socket/Coupler/Joiner PN16 SDR11

In addition to our EF fittings APS provides essential support equipment and services required for EF installations. Our services include EF machine calibration, as well as the provision of the Clamping and Scraping devices/tools necessary for preparing the electrofusion joints. We offer comprehensive training courses tailored to meet the diverse needs of our customers. Our training programs cover all aspects of EF and Buttwelding installation, from machine operation to joint preparation techniques. Whether it's on-site training or at our dedicated facility, Advanced Piping Systems ensures that our clients are equipped with the knowledge and skills necessary to achieve optimal results in their pipeline projects. To facilitate this, we offer a wide range of butt-fusion and electrofusion pressure welding machines.
