Forged Reducing Tees

Forged Reducing Tees

Fittings Made from Pipe

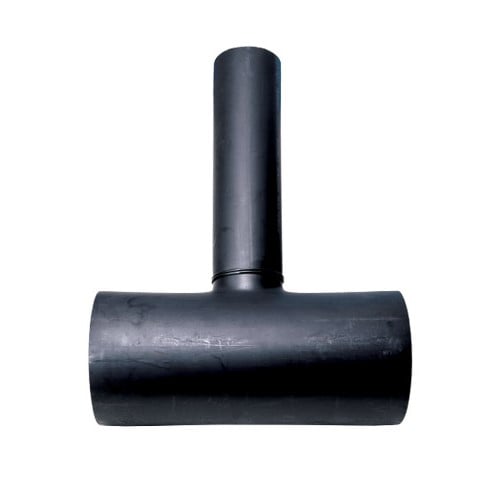

SDR11 Advanced Piping are manufacturers of high-quality forged reducing tees from 200mm to 1200mm. Forged reducing tees, also known as pull tees, are manufactured by drawing a...
Read More
For pricing, availability, and lead times, request a quote.

Pressure Rating

D Mm

Size D1 Mm

Quantity

- +

Add to Quote

Add to Quote

Please use the filters above to find a specific product below.
Alternatively, you can click on a line item below to select that specific product.

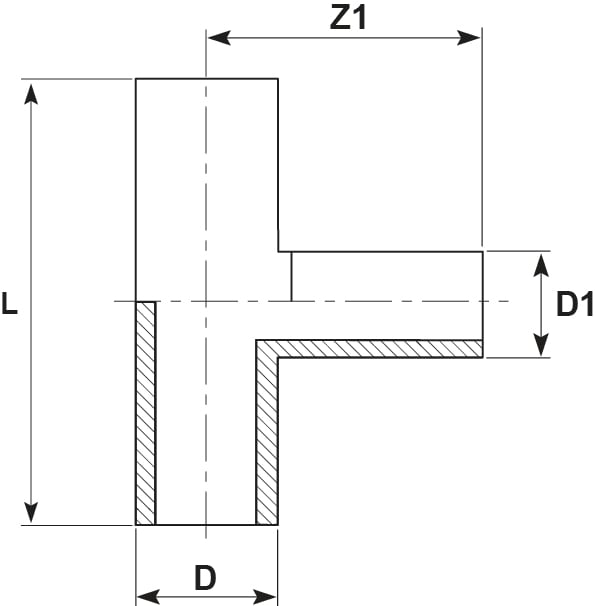

D Mm Code Pressure Rating Sdr L Mm Size D1 Mm Z1 Mm
200 FRT2009017 PN10 SDR17 550 90 600
200 FRT2009011 PN16 SDR11 550 90 600
200 FRT20011017 PN10 SDR17 550 110 600
200 FRT20011011 PN16 SDR11 550 110 600
225 FRT2259017 PN10 SDR17 550 90 600
225 FRT2259011 PN16 SDR11 550 90 600
225 FRT22511017 PN10 SDR17 550 110 600
225 FRT22511011 PN16 SDR11 550 110 600
250 FRT2509017 PN10 SDR17 650 90 600
250 FRT2509011 PN16 SDR11 650 90 600
250 FRT25016017 PN10 SDR17 650 160 600
250 FRT25016011 PN16 SDR11 650 160 600
250 FRT25011017 PN10 SDR17 650 110 600
250 FRT25011011 PN16 SDR11 650 110 600
280 FRT2809017 PN10 SDR17 650 90 600
280 FRT2809011 PN16 SDR11 650 90 600
280 FRT28020017 PN10 SDR17 650 200 600
280 FRT28020011 PN16 SDR11 650 200 600
280 FRT28016017 PN10 SDR17 650 160 600
280 FRT28016011 PN16 SDR11 650 160 600
280 FRT28011017 PN10 SDR17 650 110 600
280 FRT28011011 PN16 SDR11 650 110 600
315 FRT3159017 PN10 SDR17 700 90 600
315 FRT3159011 PN16 SDR11 700 90 600
315 FRT31516017 PN10 SDR17 700 160 650
315 FRT31516011 PN16 SDR11 700 160 650
315 FRT31511017 PN10 SDR17 700 110 600
315 FRT31511011 PN16 SDR11 700 110 600
355 FRT3559017 PN10 SDR17 700 90 650
355 FRT3559011 PN16 SDR11 700 90 650
355 FRT35525017 PN10 SDR17 700 250 700
355 FRT35525011 PN16 SDR11 700 250 700
355 FRT35522517 PN10 SDR17 700 225 700
355 FRT35522511 PN16 SDR11 700 225 700
355 FRT35520017 PN10 SDR17 700 200 700
355 FRT35520011 PN16 SDR11 700 200 700
355 FRT35516017 PN10 SDR17 700 160 650
355 FRT35516011 PN16 SDR11 700 160 650
355 FRT35511017 PN10 SDR17 700 110 650
355 FRT35511011 PN16 SDR11 700 110 650
355 FRT31520017 PN10 SDR17 700 200 650
355 FRT31520011 PN16 SDR11 700 200 650
400 FRT4009017 PN10 SDR17 750 90 800
400 FRT4009011 PN16 SDR11 750 90 800
400 FRT40028017 PN10 SDR17 750 280 900
400 FRT40028011 PN16 SDR11 750 280 900
400 FRT40025017 PN10 SDR17 750 250 900
400 FRT40025011 PN16 SDR11 750 250 900
400 FRT40022517 PN10 SDR17 750 225 900
400 FRT40022511 PN16 SDR11 750 225 900
400 FRT40020017 PN10 SDR17 750 200 900
400 FRT40020011 PN16 SDR11 750 200 900
400 FRT40016017 PN10 SDR17 750 160 800
400 FRT40016011 PN16 SDR11 750 160 800
400 FRT40011017 PN10 SDR17 750 110 800
400 FRT40011011 PN16 SDR11 750 110 800
450 FRT4509017 PN10 SDR17 750 90 900
450 FRT4509011 PN16 SDR11 750 90 900
450 FRT45031511 PN16 SDR11 800 315 1000
450 FRT45028017 PN10 SDR17 800 280 1000
450 FRT45028011 PN16 SDR11 800 280 1000
450 FRT45025017 PN10 SDR17 800 250 1000
450 FRT45025011 PN16 SDR11 800 250 1000
450 FRT45022517 PN10 SDR17 750 225 1000
450 FRT45022511 PN16 SDR11 750 225 1000
450 FRT45020017 PN10 SDR17 750 200 1000
450 FRT45020011 PN16 SDR11 750 200 1000
450 FRT45016017 PN10 SDR17 750 160 900
450 FRT45016011 PN16 SDR11 750 160 900
450 FRT45011017 PN10 SDR17 750 110 900
450 FRT45011011 PN16 SDR11 750 110 900
500 FRT50035511 PN16 SDR11 900 355 1000
500 FRT50031517 PN10 SDR17 900 315 1000
500 FRT50031511 PN16 SDR11 900 315 1000
500 FRT50028017 PN10 SDR17 900 280 1000
500 FRT50028011 PN16 SDR11 900 280 1000
500 FRT50025017 PN10 SDR17 900 250 1000
500 FRT50025011 PN16 SDR11 900 250 1000
500 FRT50022517 PN10 SDR17 800 225 1000
500 FRT50022511 PN16 SDR11 800 225 1000
500 FRT50020017 PN10 SDR17 800 200 1000
500 FRT50020011 PN16 SDR11 800 200 1000
500 FRT50016017 PN10 SDR17 800 160 1000
500 FRT50016011 PN16 SDR11 800 160 1000
560 FRT56035517 PN10 SDR17 1200 355 1000
560 FRT56035511 PN16 SDR11 1200 355 1000
560 FRT56031517 PN10 SDR17 1200 315 1000
560 FRT56031511 PN16 SDR11 1200 315 1000
560 FRT56028017 PN10 SDR17 1200 280 1000
560 FRT56028011 PN16 SDR11 1200 280 1000
560 FRT56025017 PN10 SDR17 900 250 1000
560 FRT56025011 PN16 SDR11 900 250 1000
560 FRT56022517 PN10 SDR17 900 225 1000
560 FRT56022511 PN16 SDR11 900 225 1000
560 FRT56020017 PN10 SDR17 900 200 1000
560 FRT56020011 PN16 SDR11 900 200 1000
630 FRT63045017 PN10 SDR17 1200 450 1200
630 FRT63045011 PN16 SDR11 1200 450 1200
630 FRT63040017 PN10 SDR17 1200 400 1200
630 FRT63040011 PN16 SDR11 1200 400 1200
630 FRT63035517 PN10 SDR17 1200 355 1100
630 FRT63035511 PN16 SDR11 1200 355 1100
630 FRT63031517 PN10 SDR17 1200 315 1100
630 FRT63031511 PN16 SDR11 1200 315 1100
630 FRT63028017 PN10 SDR17 1200 280 1000
630 FRT63028011 PN16 SDR11 1200 280 1000
630 FRT63025017 PN10 SDR17 1200 250 1000
630 FRT63025011 PN16 SDR11 1200 250 1000
630 FRT63022517 PN10 SDR17 1200 225 1000
630 FRT63022511 PN16 SDR11 1200 225 1000
630 FRT63020017 PN10 SDR17 1200 200 1000
630 FRT63020011 PN16 SDR11 1200 200 1000
710 FRT71050011 PN16 SDR17 1500 500 1300
710 FRT71045017 PN10 SDR17 1500 500 1300
710 FRT71045011 PN16 SDR17 1500 450 1300
710 FRT71040017 PN10 SDR17 1500 450 1300
710 FRT71040011 PN16 SDR17 1500 400 1300
710 FRT71035517 PN10 SDR17 1200 400 1200
710 FRT71035511 PN16 SDR17 1200 355 1200
710 FRT71031517 PN10 SDR17 1200 355 1200
710 FRT71031511 PN16 SDR17 1200 315 1200
710 FRT71028017 PN10 SDR17 1200 280 1200
710 FRT71028011 PN16 SDR11 1200 280 1200
710 FRT71025017 PN10 SDR17 1200 250 1100
710 FRT71025011 PN16 SDR11 1200 250 1100
710 FRT71022517 PN10 SDR17 1200 225 1100
710 FRT71022511 PN16 SDR11 1200 225 1100
710 FRT71020017 PN10 SDR17 1200 200 1100
710 FRT71020011 PN16 SDR11 1200 200 1100
800 FRT80063011 PN16 SDR17 1600 630 1500
800 FRT80056017 PN10 SDR17 1600 630 1500
800 FRT80056011 PN16 SDR17 1600 560 1500
800 FRT80050017 PN10 SDR17 1600 560 1400
800 FRT80050011 PN16 SDR17 1600 500 1400
800 FRT80045017 PN10 SDR17 1600 500 1400
800 FRT80045011 PN16 SDR17 1600 450 1400
800 FRT80040017 PN10 SDR17 1600 450 1300
800 FRT80040011 PN16 SDR17 1600 400 1300
800 FRT80035517 PN10 SDR17 1200 400 1300
800 FRT80035511 PN16 SDR17 1200 355 1300
800 FRT80031517 PN10 SDR17 1200 355 1200
800 FRT80031511 PN16 SDR17 1200 315 1200
800 FRT80028017 PN10 SDR17 1200 315 1200
800 FRT80028011 PN16 SDR17 1200 280 1200
800 FRT80025017 PN10 SDR17 1200 280 1200
800 FRT80025011 PN16 SDR17 1200 250 1200
800 FRT80022517 PN10 SDR17 1200 250 1100
800 FRT80022511 PN16 SDR17 1200 225 1100
800 FRT80020017 PN10 SDR17 1200 225 1100
800 FRT80020011 PN16 SDR17 1200 200 1100
800 FRT71050017 PN10 SDR17 1500 200 1300
1000 FRT80063017 PN10 SDR17 1600 200 1500
N/A FRT120063017 PN10 SDR17 1800 N/A 1800
1000 FRT120025011 PN16 SDR17 1300 250 1500
1000 FRT100063017 PN10 SDR17 1700 250 1700
1000 FRT100063011 PN16 SDR17 1700 630 1700
1000 FRT100056017 PN10 SDR17 1700 630 1700
1000 FRT100056011 PN16 SDR17 1700 560 1700
1000 FRT100050017 PN10 SDR17 1700 560 1600
1000 FRT100050011 PN16 SDR17 1700 500 1600
1000 FRT100045017 PN10 SDR17 1700 500 1600
1000 FRT100045011 PN16 SDR17 1700 450 1600
1000 FRT100040017 PN10 SDR17 1700 450 1500
1000 FRT100040011 PN16 SDR17 1700 400 1500
1000 FRT100035517 PN10 SDR17 1200 400 1500
1000 FRT100035511 PN16 SDR17 1200 355 1500
1000 FRT100031517 PN10 SDR17 1200 355 1500
1000 FRT100031511 PN16 SDR17 1200 315 1500
1000 FRT100028017 PN10 SDR17 1200 315 1400
1000 FRT100028011 PN16 SDR17 1200 280 1400
1000 FRT100025017 PN10 SDR17 1200 280 1400
1000 FRT100025011 PN16 SDR17 1200 250 1400
1000 FRT100022517 PN10 SDR17 1200 250 1400
1000 FRT100022511 PN16 SDR17 1200 225 1400
1000 FRT100020017 PN10 SDR17 1200 225 1400
1000 FRT100020011 PN16 SDR17 1200 200 1400
1200 FRT120063011 PN16 SDR17 1800 630 1800
1200 FRT120056017 PN10 SDR17 1800 630 1800
1200 FRT120056011 PN16 SDR17 1800 560 1800
1200 FRT120050017 PN10 SDR17 1800 560 1800
1200 FRT120050011 PN16 SDR17 1800 500 1800
1200 FRT120045017 PN10 SDR17 1800 500 1700
1200 FRT120045011 PN16 SDR17 1800 450 1700
1200 FRT120040017 PN10 SDR17 1800 450 1700
1200 FRT120040011 PN16 SDR17 1800 400 1700
1200 FRT120035517 PN10 SDR17 1300 400 1600
1200 FRT120035511 PN16 SDR17 1300 355 1600
1200 FRT120031517 PN10 SDR17 1300 355 1600
1200 FRT120031511 PN16 SDR17 1300 315 1600
1200 FRT120028017 PN10 SDR17 1300 315 1500
1200 FRT120028011 PN16 SDR17 1300 280 1500
1200 FRT120025017 PN10 SDR17 1300 280 1500

Compliance

Compliance
Our products are tested regularly for high quality, durability, performance and safety.
Download PDF

Product FAQs

  • What are the key considerations when managing expansion in above-ground HDPE pipe installations?


Thermal Expansion

Length of Pipeline (metres)

Lowest Possible Temperature (in degrees C)

Highest Possible Temperature (in degrees C)
