Galvanised ANSI 150

Galvanised ANSI 150 also known as ASME B16.5 ANSI 150. ANSI is abbreviation for American National Standards Institute. This flange table is most common in mining, Oil, Gas & r...

For pricing, availability, and lead times, request a quote.

Pcd

Pe Pipe Size Mm

Please make a selection from each filter above in order to "Add to Quote".

Quantity

- +

Add to Quote

Please use the filters above to find a specific product below.
Alternatively, you can click on a line item below to select that specific product.

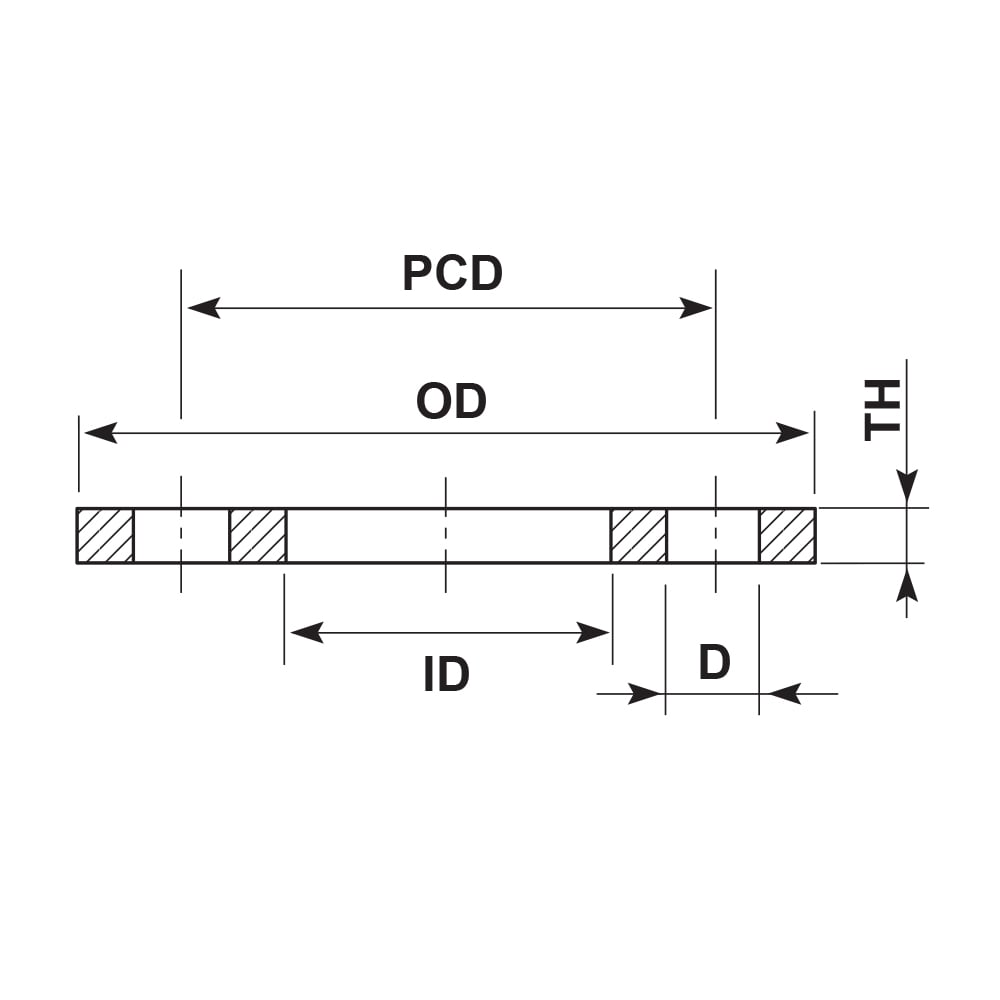

Pe Pipe Size Mm	Size Od Mm	Bolt Size M	Id Mm	Product Code	Pcd	Flange Size Mm	No Bolt Holes	Bolt Hole Diameter	Weight Kg	Flange Size Inches	Th Mm	Pattern
20	90	M14	20	GBR20A	60.5	15	4	16	0.22	0.5	6	ANSI Class 150
25	98	M14	37	GBR25A	70	20	4	16	0.36	0.75	8	ANSI Class 150
32	108	M14	44	GBR32A	79.5	25	4	16	0.043	1	8	ANSI Class 150
40	117	M14	52	GBR40A	89	32	4	16	0.49	1.25	8	ANSI Class 150
50	127	M14	62	GBR50A	98.5	40	4	16	0.7	1.5	10	ANSI Class 150
63	152	M18	78	GBR63A	120.5	50	4	20	0.95	2	10	ANSI Class 150
75	178	M18	92	GBR75A	139.5	65	4	20	1.34	2.5	10	ANSI Class 150
90	191	M18	108	GBR90A	152	80	4	20	1.72	3	12	ANSI Class 150
110	229	M18	128	GBR110A	190.5	100	8	20	2.44	4	12	ANSI Class 150
125	254	M20	140	GBR125A	216	125	8	23	4.02	5	16	ANSI Class 150
140	254	M20	158	GBR140A	216	125	8	23	3.49	5	16	ANSI Class 150
160	279	M20	178	GBR160A	241	150	8	23	4.15	6	16	ANSI Class 150
180	279	M20	195	GBR180A	241	150	8	23	3.52	6	16	ANSI Class 150
200	343	M20	235	GBR200A	298.5	200	8	23	7.19	8	20	ANSI Class 150
225	343	M20	240	GBR225A	298.5	200	8	23	6.9	8	20	ANSI Class 150
250	406	M24	290	GBR250A	362	250	12	26	8.98	10	20	ANSI Class 150
280	406	M24	300	GBR280A	362	250	12	26	8.25	10	20	ANSI Class 150
315	483	M24	345	GBR315A	432	300	12	26	16.4	12	25	ANSI Class 150
355	535	M27	376	GBR355A	476	350	12	29	23.32	14	28	ANSI Class 150
400	600	M27	430	GBR400A	540	400	16	29	31.97	16	32	ANSI Class 150
450	635	M28.4	480	GBR450A	578	450	16	32	34.8	18	36	ANSI Class 150
500	700	M28.4	533	GBR500A	635	500	20	32	45.84	20	40	ANSI Class 150
560	750	M32	590	GBR560A	692	560	20	35	53.98	22	46	ANSI Class 150
630	813	M32	660	GBR630A	749	600	20	35	62.07	24	50	ANSI Class 150
710	927	M32	745	GBR710A	863.5	700	28	35	83.43	28	50	ANSI Class 150
800	1060	M39	835	GBR800A	978	800	28	41	117.21	32	50	ANSI Class 150
900	1175	M39	950	GBR900A	N/A	900	32	41	237.09	36	89	ANSI Class 150
1000	1290	M39	1030	GBR1000A	1124	1000	36	41	301.84	40	90	ANSI Class 150
1200	1510	M39	1235	GBR1200A	1142	1200	44	41	454.47	48	108	ANSI Class 150
