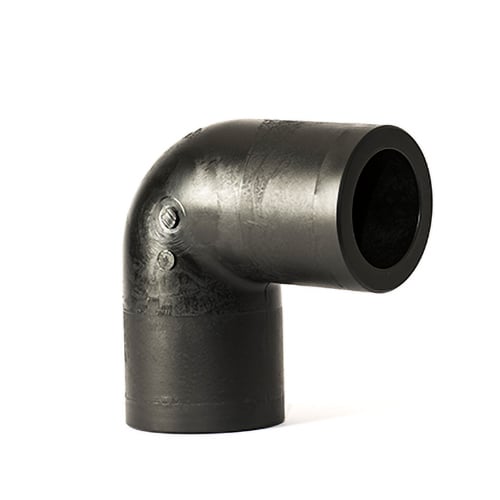

Moulded Long Spigot 90 degree Elbow

Moulded Long Spigot 90 degree Elbow are the tightest and sharpest dimensional PE100 bends available. These would also be the most commonly 90-degree fitting supplied. Being qu...

For pricing, availability, and lead times, request a quote.

Pressure Rating

D Mm

Please make a selection from each filter above in order to "Add to Quote".

Quantity

- +

Add to Quote

Please use the filters above to find a specific product below.
Alternatively, you can click on a line item below to select that specific product.

Compliance

Our products are tested regularly for high quality, durability, performance and safety.

Download PDF

Product FAQs

What are the key considerations when managing expansion in above-ground HDPE pipe installations?
- Ensure there is enough space for your pipe to both expand and contract
- When ordering pipe, order additional pipe to manage the expansion.
- Clear the space for the pipe to move of rocks and objects which could potentially damage the pipe
- Use high quality brackets and restrictors
- Meet with Advanced Pipe Systems early in your planning process to ensure a smooth outcome
- Ensure your installation is done right in the first instance, or risk issues down the track

Chemical Resistance

Moulded Long Spigot 90 degree Elbow are the tightest and sharpest dimensional PE100 bends available.

These would also be the most commonly 90-degree fitting supplied. Being quality injection moulded gives the assurance of full pressure rating, while long spigots give the flexibility of fusion welding and joining options to pipe and other fittings.

The elongated spigots or long tails can be joined by buttfusion welding or electrofusion couplers and sockets. These 90-degree elbows, or square elbows, are best suited for clean pressurised fluids and gases, the 90-degree HDPE hard and sharp elbow may be best suited dimensionally to your pipe work.

We would warn that if they are used in the wrong applications it may cause blockages and increased wear. An example would be when transporting abrasive media and solids, or if the application is flat, has no grade gravity, or low-pressure pipelines and spooling.

For transportation of abrasive media, quality smooth sweeping bends or elongated short radius bends and multi-bends are the most suitable and fail-safe option in this environment.

Advanced Piping stock 90-degree SDR11 elbows in sizes 20mm to 355mm and the high pressure 90-degree PN25 SDR7.4 elbows in sizes 32mm to 355mm.

Larger 90-degree elbows are available up to 630mm.
