90-Degree Sweep Bend - Reliable Pipe Bending

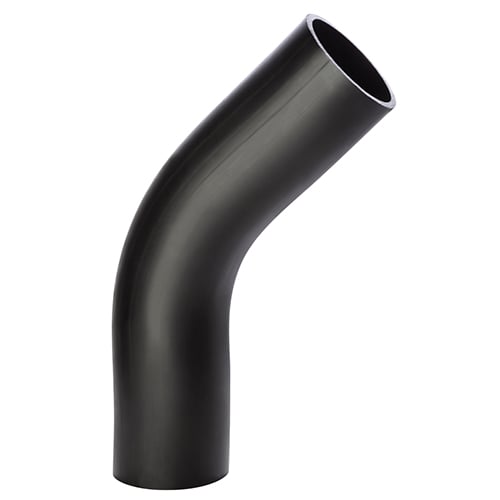

At Advanced Piping 45-degree seamless bends, also known as sweeps or radius bends, are manufactured by bending pipe. Sweep bends are the best performing bend available and wil...

For pricing, availability, and lead times, request a quote.

Pressure Rating

D Mm

Please make a selection from each filter above in order to "Add to Quote".

Quantity

- +

Add to Quote

Please use the filters above to find a specific product below.
Alternatively, you can click on a line item below to select that specific product.

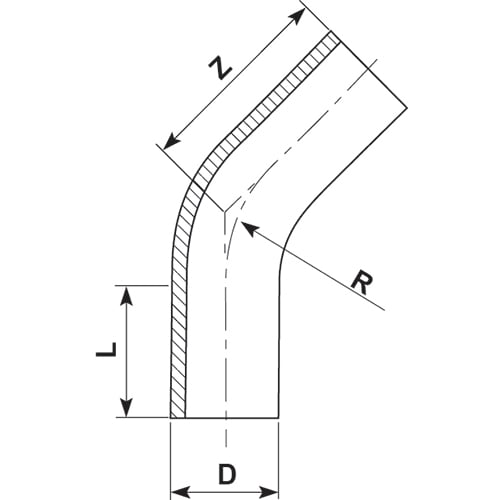

D Mm	Product Code	Pressure Rating	Sdr	Weight Kg	Spigot Length L Mm	Radius R Mm	Centre To Face Z Mm
50	SB455017	PN10	SDR17	0.25	125	200	325
50	SB455011	PN16	SDR11	0.33	125	200	325
63	SB456317	PN10	SDR17	0.41	125	200	325
63	SB456311	PN16	SDR11	0.54	125	200	325
75	SB457517	PN10	SDR17	0.3	100	113	180
75	SB457511	PN16	SDR11	0.4	100	113	180
90	SB459017	PN10	SDR17	0.6	150	135	220
90	SB459011	PN16	SDR11	0.6	150	135	220
110	SB4511017	PN10	SDR17	1	150	165	240
110	SB4511011	PN16	SDR11	1	150	165	240
125	SB4512517	PN10	SDR17	1.3	150	188	250
125	SB4512511	PN16	SDR11	1.9	150	188	250
140	SB4514017	PN10	SDR17	1.7	150	210	270
140	SB4514011	PN16	SDR11	2.6	150	210	270
160	SB4516017	PN10	SDR17	2.8	150	240	330
160	SB4516011	PN16	SDR11	4.2	150	240	330
180	SB4518017	PN10	SDR17	3.8	150	270	350
180	SB4518011	PN16	SDR11	5.6	150	270	350
200	SB4520017	PN10	SDR17	4.8	150	300	360
200	SB4520011	PN16	SDR11	7.1	150	300	360
225	SB4522517	PN10	SDR17	6.4	150	338	380
225	SB4522511	PN16	SDR11	9.4	150	338	380
250	SB4525017	PN10	SDR17	10.1	250	375	490
250	SB4525011	PN16	SDR11	15	250	375	490
280	SB4528017	PN10	SDR17	13.2	250	420	510
280	SB4528011	PN16	SDR11	19.5	250	420	510
315	SB4531517	PN10	SDR17	18.4	300	496	560
315	SB4531511	PN16	SDR11	27.1	300	496	560
355	SB4535517	PN10	SDR17	26.3	300	560	630
355	SB4535511	PN16	SDR11	38.7	300	560	630
400	SB4540017	PN10	SDR17	35.3	300	637	670
400	SB4540011	PN16	SDR11	52.2	300	637	670
450	SB4545017	PN10	SDR17	50.1	300	711	750
450	SB4545011	PN16	SDR11	74.1	300	711	750
500	SB4550017	PN10	SDR17	71.4	350	783	900
500	SB4550011	PN16	SDR11	109.9	350	783	900
560	SB4556017	PN10	SDR17	98.2	350	877	950
560	SB4556011	PN16	SDR11	145.2	350	877	950
630	SB4563017	PN10	SDR17	130.9	350	955	1000
630	SB4563011	PN16	SDR11	193.5	350	955	1000
710	SB4571017	PN10	SDR17	216.3	350	1128	1300
710	SB4571011	PN16	SDR11	320.3	350	1128	1300
800	SB4580017	PN10	SDR17	295.3	350	1274	1400
800	SB4580011	PN16	SDR11	437.1	350	1274	1400
900	SB4590017	PN10	SDR17	399.8	400	1430	1500
900	SB4590011	PN16	SDR11	592.3	400	1430	1500
